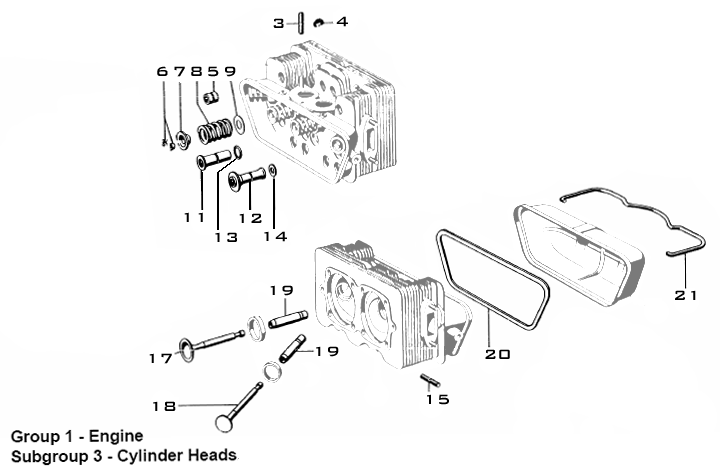

ENGINE - Cylinder Heads
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
HDS1.0  |
CYLINDER HEAD , BARE : NO VALVE GUIDES , NO VALVE SEATS INSTALLED 356 C , 356 SC , 912 (aa)008 CH 912 Fits C,SC,912 |
008 CH 912 | $627.95 |  |
| HDS1.1 |
CYLINDER HEAD , COMPLETE with VALVE GUIDES and VALVE SEATS ONLY NO VALVES , VALVE SPRINGS , VALVE RTAINERS , or VALVE KEEPERS 356 C , 356 SC , 912 (AA)616-104-301-03 Fits C,SC,912 |
616-104-301-03 | $681.95 | |
| HDS1.2 |
CYLINDER HEAD , COMPLETE with VALVE GUIDES and VALVE SEATS ONLY VALVES , VALVE SPRINGS , VALVE RTAINERS , and VALVE KEEPERS 356 C , 356 SC , 912 (AA)616-104-301-03-C |
616-104-301-03-C | $795.00 | |
| HDS1.3 |
METAL PLUG INSERT , INSERTS INTO LEFT CYLINDER HEAD RUBBER GROMMET for BREATHER CONNECTOR TUBE 616-104-393-00 Fits 912. |
616-104-393-00 | $2.17 | |
| HDS2.0 |
VALVE STEM OIL SEAL , 10mm I.D. PORSCHE SUPPLIED COMPONENT , 4 Required PER CYLINDER HEAD 616-105-491-02-OE Used on356C, 912 cylinder heads. |
616-105-491-02 | $5.50 | |
| HDS2.1 |
VALVE STEM OIL SEAL , 10mm I.D. GERMAN O.E.M. SUPPLIED COMPONENT , 4 Required PER CYLINDER HEAD 616-105-491-02 Fits 912. |
616-105-491-02 | $3.75 | |
| HDS3.0 |
CONNECTOR TUBE , STEEL for OIL VAPOR BREATHER HOSE RIGHT SIDE of CYLINDER HEAD 616-107-727-00 Fits 912 |
616-107-727-00 | $11.25 | |
| HDS4.0 |
GROMMET , for OIL BREATHER HOSE SHORT CONNECTOR TUBE 2 Required 999-702-047-50 Fits 912. |
999-702-047-50 | $6.90 | |
| HDS5.0 |
BARREL NUT , SECURES CYLINDER HEAD to CYLINDER uses HEX DRIVE WRENCH , 8 Required 901-104-382-02 Fits 356 & 912. |
901-104-382-02 | $5.15 | |
| HDS6.1 |
VALVE KEEPER , GROOVED ( THREE GROOVES ) , 16 Required PER CYLINDER HEAD 901-105-417-00 Fits 356C, SC & 912. |
901-105-417-00 | $2.51 | |
| HDS7.0 |
VALVE SPRING RETAINER , STEEL , for SINGLE GROOVE VALVE KEEPER 356 , 356 A , 356 B , 8 Required PER ENGINE 616-105-421-01 Fits 356. 356A & B |
616-105-421-01 | $30.00 | |
| HDS7.1 |
VALVE SPRING RETAINER , STEEL , for MULTI GROOVE ( THREE GROOVES ) VALVE KEEPER 356 C , 912 , 8 Required PER ENGINE 616-105-422-00 Fits 356C 912. |
616-105-422-00 | $22.00 | |
| HDS7.6 |
VALVE SPRING RETAINER , TITANIUM , for SINGLE GROOVE VALVE KEEPER 356 , 356 A , 356 B , 8 Required PER ENGINE 616-105-421-01-TI |
616-105-421-01-TI | $ | |
| HDS7.7 |
VALVE SPRING RETAINER , TITANIUM , for MULTI GROOVE ( THREE GROOVES ) VALVE KEEPER 356 C , 912 , 8 Required PER ENGINE 616-105-422-00-TI |
616-105-422-00-TI | $ | |
| HDS8.0 |
VALVE SPRING , 8 Required PER ENGINE O.E.M. GERMAN SUPPLIER 616-105-432-03 Fits 356 & 912. |
616-105-432-03 | $14.00 | |
| HDS9.0 |
SHIM for VALVE SPRING , AS Required , MAXIMUM UP to 24 SHIMS 369-04-218 Fits 356 & 912. |
369-04-218 | $4.00 | |
| HDS12.0 |
NUT , LONG TUBULAR , LARGE HEAD , 356 B , 356 C , 912 SECURES CYLINDER HEAD to ENGINDER CYLINDER AVAILABLE UPON REQUEST 616-104-381-00 Fits 356B, C & 912. CURRENTLY UNAVAILABLE. |
616-104-381-00 | $4.80 | |
| HDS13.0 |
O-RING SEAL , RED SILICONE SEALS OIL LEAKAGE at CYLINDER HEAD SECURING NUT 8 Required PER CYLINDER HEAD 539-04-203 Fits 356 & 912. |
539-04-203 | $1.75 | |
| HDS14.0 |
WASHER , BETWEEN RED SILICONE OIL SEAL and CYLINDER HEAD SECURING NUT 10mm X 19mm , ZINC FINISH , 8 Required PER CYLINDER HEAD 999-031-062-02 Fits 356B, C & 912. |
999-031-062-02 | $1.55 | |
| HDS15.0 |
EXHAUST STUD , SECURES EXHAUST MANIFOLD to ENGINE CYLINDER HEAD 8mm X 20mm , 4 Required 616-062-005-02 Fits all 4 cylinder engines. Order EXH9.0 |
NLA-062-005-02 | $5.10 | |
| HDS15.1 |
HEX NUT , SECURES EXHAUST MANIFOLD to ENGINE CYLINDER HEAD M8 8mm , 4 Required 999-076-003-02 Fits 356 & 912. |
999-076-003-02 | $0.75 | |
| HDS16.0 |
FULL METALLIC GASKET EXHAUST MANIFOLD FLANGE at CYLINDER HEAD EXHAUST PORT , 4 Required PER CYLINDER HEAD 616-111-291-00 Fits 356 & 912. Order EXH3.0 |
616-111-291-00 | $8.00 | |
| HDS17.0 |
INTAKE VALVE , 38.0mm HEAD O.D. , SINGLE GROOVE KEEPER , ATE No 3030 , 4 Required PER ENGINE 546-05-203 Fits 356A, B Normal & Super. |
VPF-05-203 | $15.50 | |
| HDS17.1 |
INTAKE VALVE , 40.0mm HEAD O.D. , SINGLE GROOVE KEEPER , ATE No 3041 , 4 Required PER ENGINE 616-105-401-00 Fits 356B Super 90 only. |
VPI-105-401-00 | $26.00 | |
| HDS17.2 |
INTAKE VALVE , 38.0mm HEAD O.D. , MULTI ( THREE ) GROOVE KEEPER , ATE No 3044 , 4 Required PER ENGINE 616-105-402-00 Fits 356C, SC, & 912. |
VPI-105-402-00 | $14.00 | |
| HDS17.3 |
INTAKE VALVE , 40.0mm HEAD O.D. , MULTI ( THREE ) GROOVE KEEPER , ATE No 3041-3G , 4 Required PER ENGINE KLASSE 356 EXCLUSIVE 616-105-401-00-3G |
3041-3G | $24.00 | |
| HDS18.1 |
EXHAUST VALVE , 31.0mm HEAD O.D. , SINGLE GROOVE KEEPER , ATE No 3043 , 4 Required PER ENGINE 616-105-405-50 Fits 356A/B Normal, Super & Super 90. |
616-105-405-50 | $24.00 | |
| HDS18.2 |
EXHAUST VALVE , 34.0mm HEAD O.D. , MULTI ( THREE ) GROOVE KEEPER , ATE No 3048 , 4 Required PER ENGINE 616-105-406-01 Fits 356C, SC, & 912. |
VPI-105-406-01 | $21.00 | |
| HDS19.0 |
VALVE GUIDE , INTAKE and EXHAUST STANDARD OUTSIDE DIAMETER 0.5540" O.D. , ATE No 75-3034-00 , 8 Required PER ENGINE 616-104-322-00 Intake & Exhaust guide up to 62. Exhaust guide only 63-65C, SC & 912. |
616-104-322-00 | $10.90 | |
| HDS19.1 |
VALVE GUIDE , INTAKE and EXHAUST 1st. OVERSIZE OUTSIDE DIAMETER 0.5560" O.D. , ATE No 75-3034-02 , 8 Required PER ENGINE 616-104-322-02 Intake & Exhaust guide up to 62. Exhaust guide only 63-65C, SC & 912. |
616-104-322-02 | $9.67 | |
| HDS19.2 |
VALVE GUIDE , INTAKE and EXHAUST 2nd. OVERSIZE OUTSIDE DIAMETER 0.5590" O.D. , ATE No 75-3034-05 , 8 Required PER ENGINE 616-104-322-05 Intake & Exhaust guide up to 62. Exhaust guide only 63-65C, SC & 912. |
616-104-322-05 | $11.50 | |
| HDS19.3 |
VALVE GUIDE , INTAKE ONLY , SPECIAL DESIGN STANDARD OUTSIDE DIAMETER 0.5540" O.D. , 8 Required PER ENGINE 616-104-321-00 Only 63-65C,SC & 912. |
616-104-321-00 | $8.00 | |
| HDS20.0 |
VALVE COVER GASKET , CORK / RUBBER , 2 Required PER ENGINE 616-104-951-00 Fits 356 & 912. |
616-104-951-00 | $9.78 | |
| HDS21.0 |
VALVE COVER RETAINING BALE TYPE SPRING , 2 Required PER VEHICLE 539-04-240 Fits 356 & 912. |
NLA-04-240 | $29.70 | |
| HDS115.3 |
INTAKE VALVE , CARRERA , 50mm HEAD O.D. , SINGLE GROOVE KEEPER , 4 Required PER ENGINE 904 587 105 401 01 |
587 105 401 01 | $90.00 | |
| HDS115.4 |
EXHAUST VALVE , CARRERA , 43mm HEAD O.D. , SINGLE GROOVE KEEPER , 4 Required PER ENGINE 904 587 105 405 00 |
587 105 405 00 | $ | |
| HDS115.8 |
INTAKE VALVE , CARRERA , 48mm HEAD O.D. , SINGLE GROOVE KEEPER , 4 Required PER ENGINE CARRERA 1500 GS/GT , 1600 GS/GT 719-105-401-00 |
719-105-401-00 | $ | |
| HDS115.9 |
EXHAUST VALVE , CARRERA , 41mm HEAD O.D. , SINGLE GROOVE KEEPER , 4 Required PER ENGINE CARRERA 1500 GS/GT , 1600 GS/GT 719-105-405-50 |
719-105-405-50 | $ | |
Prices and availability subject to change without notice.
