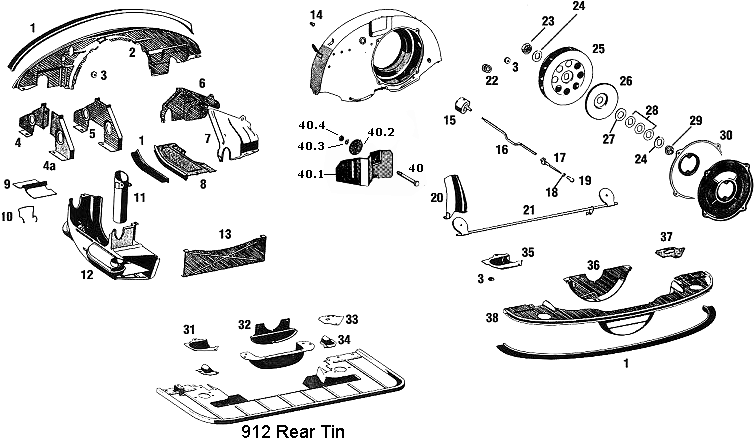

ENGINE - Sheet Metal Tin


Part Number Description Price Add
ETN1.1
Seal, Engine tray. USA version. One piece, trim to fit. $21.25 Add item to cart
ETN1.2
Seal, Engine tray. Euro Version.
Includes: 1-850mm length of USA profile, 2 -300mm lengths of European profile, & 1 - 1000mm length of European profile.
$41.75 Add item to cart
ETN2.0
Cover plate, flywheel end of engine.
Fits all 356 with USA style heater.
$236.50 Add item to cart
ETN3.0
Grommet, fuel line & choke wire. 2 Req'ed. Fits 356B & C. $2.25 Add item to cart
ETN4.0
Side Covers, Set of 2. SPECIAL ORDER
Fits engines WITH Solex carburetors.
$87.00 Add item to cart
ETN5.0
Side Covers. 2 Req'ed. Fits Engines WITH Zenith Carburetors. $57.00 Add item to cart
ETN6.0
Cover plate, Cylinders. REAR RIGHT. Fits 356 & 912 Engines. $41.00 Add item to cart
ETN6.1
Cover plate, Cylinders. REAR LEFT. Fits 356 & 912 Engines. $131.00 Add item to cart
ETN7.0
Cover plate, Cylinders. FRONT LEFT - Pulley Side. Fits 356 & 912 Engines. $57.00 Add item to cart
ETN7.1
Cover plate, Cylinders. FRONT RIGHT - Pulley side. Fits 356 & 912 Engines. $282.00 Add item to cart
ETN8.0
Side cover plate, LEFT. Fits 356 Engines. $60.00 Add item to cart
ETN8.1
Side cover plate, RIGHT. Fits 356 Engines. $60.00 Add item to cart
ETN9.0
Deflector plate, LEFT. Fits 356 & 912 Engine. $15.00 Add item to cart
ETN9.1
Deflector plate, RIGHT. Fits 356 & 912 Engines. $15.25 Add item to cart
ETN10.0
Retaining Spring. 2 Req'ed. Fits 356 & 912 Engines. $13.00 Add item to cart
ETN11.0
Air guide tube, LEFT. Fits 356 & 912 Engines. $89.00 Add item to cart
ETN11.1
Air guide tube, RIGHT. CURRENTLY UNAVAILABLE. Fits 356 & 912 Engines. $74.61 Add item to cart
ETN12.0
Flapper box, RIGHT. SPECIAL ORDER. Fits Super 90 & SC Engines. $647.00 Add item to cart
ETN12.1
Flapper box, LEFT. Fits Super 90 & SC Engines. $647.00 Add item to cart
ETN12.2
Flapper box, LEFT. Fits 912 Engines. $403.00 Add item to cart
ETN12.3
Flapper box, RIGHT. SPECIAL ORDER. Fits 912 Engine. $403.00 Add item to cart
ETN13.0
Bottom Flange Cover. Fits 356 & 912 Engine. $19.25 Add item to cart
ETN14.0
Rubber plug, fan shroud.
3 Req'ed - 356A. 2 Req'ed for 356B, C & 912.
$4.00 Add item to cart
ETN15.0
Thermostat Bellow for carburetor preheat. Fits 356 & 912 Engine. $244.00 Add item to cart
ETN16.0
Thermostat Rod, UPPER. Fits 356 & 912 Engine. $15.75 Add item to cart
ETN17.0
Thermostat Rod, LOWER, WITHOUT ball socket. Fits 356 & 912 Engines. $23.50 Add item to cart
ETN18.0
Lock Nut, 5mm Fits Lower Thermostat Rod. $0.50 Add item to cart
ETN19.0
Ball socket, 5mm R/H thread. See CBL4.0 Fits Lower Thermostat Rod. $8.50 Add item to cart
ETN20.0
Air Duct. 2 Req'ed. Fits 356 & 912 Engines. $41.00 Add item to cart
ETN21.0
Operating shaft with flaps. Fits 356 Engines. $250.00 Add item to cart
ETN21.1
Operating shaft with flaps, LEFT. SPECIAL ORDER. Fits 912 Engines. $45.00 Add item to cart
ETN21.2
Operating shaft with flaps, RIGHT. SPECIAL ORDER. Fits 912 Engine. $112.50 Add item to cart
ETN22.0
Rubber Plug. Fits 912 Engine Fan Shroud. $3.00 Add item to cart
ETN23.0
Nut, Fan Impeller. Fits 356 & 912 Engine. $18.50 Add item to cart
ETN24.0
Drive Plate. Fits 356 & 912 Engine. $4.07 Add item to cart
ETN25.0
Fan, Impeller. CURRENTLY UNAVAILABLE.. Fits 356 & 912 WITH 350W generators. $135.65 Add item to cart
ETN25.1
Fan, Impeller. SPECIAL ORDER. Fits 912 Engine WITH 420w generator. $165.81 Add item to cart
ETN25.2
Fan Impeller, 28 blade - Reconditioned. balanced & painted.
The fan impeller is media blasted, each fin is welded to prevent fan failure and balanced to reduce vibration. Then painted to prevent rust. Core required or $150 Core Charge applied.
$250.00 Add item to cart
ETN26.0
Cover Plate. Fits 912 Engine WITH 420w generator. $90.75 Add item to cart
ETN27.0
Washer. 356 Engine, as needed. 1 for 912 Engines $5.00 Add item to cart
ETN28.0
Shims, as Req'ed. Fits 356 & 912 Engine. $2.50 Add item to cart
ETN29.0
Fan Hub. CURRENTLY UNAVAILABLE.. Fits 356 & 912 Engines WITH 350w generators. $47.00 Add item to cart
ETN29.1
Fan Hub. Fits 356 & 912 Engines WITH 420w generator. $56.50 Add item to cart
ETN30.0
Fiber Spacer, Fan Shroud. Fits 356B, C & 912. $4.25 Add item to cart
ETN31.0
Cover Plate, Fuel Pump. AVAILABLE UPON REQUEST. Fits 912 Engine. $82.75 Add item to cart
ETN32.0
Cover plate, below crankshaft pulley. Fits 912 Engine. $108.00 Add item to cart
ETN33.0
Cover Plate, Dip Stick. Fits 912 Engine. $9.00 Add item to cart
ETN34.0
Cover Cap, RIGHT. Fits 912 Engine. $24.00 Add item to cart
ETN34.1
Cover Cap, LEFT. Fits 912 Engine. $24.00 Add item to cart
ETN35.0
Plate, under fuel pump. Fits 356 Engine. $22.75 Add item to cart
ETN36.0
Plate below pulley. Fits 356 Engine. $62.75 Add item to cart
ETN37.0
Cover Plate, Dip Stick. Fits 356, A & B. $20.25 Add item to cart
ETN37.1
Cover Plate, Dip Stick. Fits 356C. $9.00 Add item to cart
ETN38.0
Cover plate, engine to body. Fits 356 Engine. $147.25 Add item to cart
ETN40.0
Bolt, hex M6x80mm. Used in mounting oil filter bracket. 2 Req'ed. $1.50 Add item to cart
ETN40.1
Bracket, Oil Canister. $83.00 Add item to cart
ETN40.2
Washer, M6x30. 2 Req'ed. $0.75 Add item to cart
ETN40.3
Washer, Split - 6M. 2 Req'ed. $0.25 Add item to cart
ETN40.4
Nut, M6. 2 Req'ed. $0.20 Add item to cart


Prices and availability subject to change without notice.
