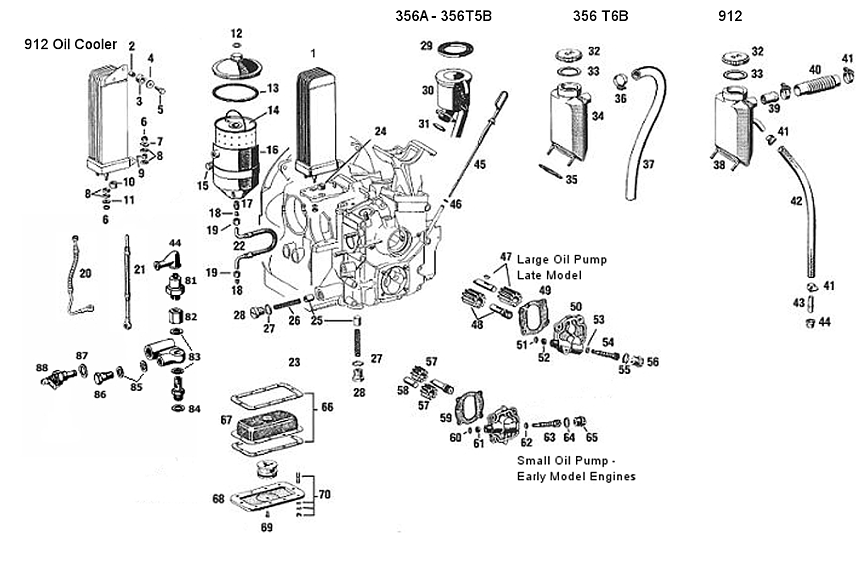

ENGINE - Oil System
| Part Number | Description | Price | Add | |
|---|---|---|---|---|
EOS1.0 |
OIL COOLER ASSEMBLY , ALUMINUM , 4 ROW PREMIUM QUALITY AFTERMARKET OIL COOLER ASSEMBLY 616-107-041-01-PR or 8002313 Fits 356/912 |
8002313 | $515.00 |  |
| EOS1.1 |
OIL COOLER ASSEMBLY , ALUMINUM , 4 ROW QUALITY AFTERMARKET OIL COOLER ASSEMBLY 616-107-041-01 or PE9300 Fits 356/912 |
PE9300 | $260.00 | |
EOS2.0 |
BUSHING SHORT SIDE SUPPORT , BUSHING for OIL COOLER SIDE DISTANCE MOUNTING 616-107-542-00 Fits Late 912 Engines. |
616-107-542-00 | $6.80 | |
| EOS4.0 |
WASHER , WASHER for OIL COOLER SIDE MOUNTING 999-025-048-02 Fits Late 912 Engines. |
999-025-048-02 | $6.70 | |
| EOS5.0 |
BOLT SPECIAL OIL COOLER SIDE MOUNTING This SPECIAL BOLT is USED to SECURE the ENGINE OIL COOLER FROM the SIDE REPLACES O.E.M. Part Number 616-107-544-00 900-075-017-02 Fits late 912 Engines. CURRENTLY UNAVAILABLE. |
900-075-017-02 | $1.50 | |
| EOS8.0 |
O-RING OIL SEAL , USED to SEAL the OIL COOLER BOTTOM to the ENGINE CRANK CASE TOP , 6 Required 999-701-142-40 Fits Late 912 Engines. |
999-701-142-40 | $4.20 | |
| EOS9.0 |
BUSHING BOTTOM MOUNTING , BUSHING for OIL COOLER BOTTOM MOUNTING DISTANCE , 2 Required 616-107-541-00 Fits Late 912 Engines. |
616-107-541-00 | $6.50 | |
| EOS10.0 |
SEAL RING , CIRCULAR SEALING RING for BOTTOM of OIL COOLER MOUNTING SYSTEM , 2 Required 999-704-132-50 Fits Late 912 Engines. |
999-704-132-50 | $4.60 | |
| EOS11.0 |
WASHER FLAT for BOTTOM of OIL COOLER MOUNTING SYSTEM , 2 Required 999-025-043-00 Fits Late 912 Engines. |
999-025-043-00 | $21.75 | |
| EOS12.1 |
COPPER WASHER , 12mm X 18mm for Sealing FRAM OIL FILTER CANISTER TOP COVER to BOLT HEAD 900-123-006-25 Fits 356 & 912 Engines. |
900-123-006-25 | $0.51 | |
| EOS12.2 |
COPPER WASHER , 15mm X 22mm for Sealing H-TOP OIL FILTER CANISTER TOP COVER to BOLT HEAD 900-123-019-20 Fits 356 & 912 Engines. |
900-123-019-20 | $1.95 | |
| EOS13.0 |
GASKET FLAT PAPER SEALS OIL FILTER CANISTER TOP LID to CANISTER BODY 546-07-829 All 356 & 912 Engines. |
546-07-829 | $5.10 | |
| EOS14.0 |
OIL FILTER CATRIDGE , BOSCH Manufacture 72 127 Fits 356 & 912 Engines. |
72 127 | $25.00 | |
| EOS14.1 |
OIL FILTER CATRIDGE , MAHLE Manufacture NLA-07-828 or OX79 Fits 356 & 912 Engines. |
NLA-07-828 or OX79 | $14.65 | |
| EOS14.2 |
OIL FILTER CATRIDGE , MANN Manufacture 091 43001 058 Fits 356 & 912 Engines. |
091 43001 058 | $18.50 | |
| EOS15.0 |
MOUNTING STRAP OIL FILTER CONTAINMENT CANISTER ASSEMBLY to ENGINE SHEET METAL 546-09-301 Fits all 356 & early 912. |
546-09-301 | $18.56 | |
| EOS16.0 |
OIL FILTER CANISTER ASSEMBLY , COMPLETE 546-07-800 Fits all 356 & 912 Engines. |
546-07-800 | $250.20 | |
| EOS17.0 |
FITTING OUTLET CONNECTS OIL OUTLET LINE to OIL FILTER CANISTER ASSEMBLY BOTTOM OUTLET 900-105-001-02 Fits all 356 & 912 Engines. |
900-105-001-02 | $5.50 | |
| EOS18.0 |
SLEEVE for FITTING OUTLET ASSEMBLY that CONNECTS OIL OUTLET LINE to OIL FILTER CANISTER ASSEMBLY BOTTOM OUTLET 900-102-001-02 2 Req'ed up to early 356A. 3 Req'ed for late 356A to 912. |
900-102-001-02 | $0.75 | |
| EOS19.0 |
NUT for FITTING OUTLET ASSEMBLY that CONNECTS OIL OUTLET LINE to OIL FILTER CANISTER ASSEMBLY BOTTOM OUTLET 900-104-001-02 2 Req'ed up to early 356A. 3 Req'ed for late 356A to 912. |
900-104-001-02 | $0.90 | |
| EOS20.0 |
INPUT OIL LINE to OIL FILTER CANISTER ASSEMBLY Includes INPUT FITTING SLEEVE and NUT 539-07-818 Fits 1600 to Engine #67001. 1600S to Engine #81201. |
539-07-818 | $60.00 | |
EOS21.0 |
INPUT OIL LINE to OIL FILTER CANISTER ASSEMBLY Includes INPUT FITTING SLEEVE and NUT 616-07-818 Fits 1600 to Engine #67001. 1600S to Engine #81201. |
616-07-818 | $55.00 | |
| EOS22.0 |
INPUT OIL LINE OUTPUT from OIL FILTER CANISTER ASSEMBLY Includes INPUT FITTING SLEEVE and NUT 539-07-826 Fits 356 & 912. |
539-07-826 | $55.00 | |
| EOS23.0 |
OIL COOLER ASSEMBLY , STEEL , 2 ROW QUALITY AFTERMARKET FACTORY Type OIL COOLER ASSEMBLY 616-107-041-01 or PE9300 Fits all 356 & 912 Engines. |
616-107-041-01 or PE9300 | $450.00 | |
| EOS24.0 |
SEAL RING , ORIGINAL FACTORY Type SEAL RING for BOTTOM of the OIL COOLER ASSEMBLY PORTS to MOUNT , 2 Required 616-01-123 Fits 356 & 912 oil cooler. |
616-01-123 | $2.50 | |
| EOS24.1 |
SEAL RING , RED SILICONE for BOTTOM of the OIL COOLER ASSEMBLY PORTS to MOUNT , 2 Required 111-117-151 Fits early57 engines with stock oil cooler. |
111-117-151 | $3.00 | |
| EOS24.2 |
SEAL RING for BOTTOM of the OIL COOLER ASSEMBLY PORTS to MOUNT , 2 Required 111-198-029 Used with AL cooler on early engines. |
111-198-029 | $6.00 | |
| EOS25.0 |
PISTON OIL PRESSURE RELIEF VALVE , 2 Required , PORSCHE O.E.M. COMPONENT PCG-616-107-511-00 Fits 356B, C, & 912. |
PCG-616-107-511-00 | $36.31 | |
| EOS26.0 |
SPRING OIL PRESSURE RELIEF VALVE , 2 Required 999-521-016-00 Fits 356B, C, & 912. |
999-521-016-00 | $4.20 | |
| EOS27.0 |
COPPER FLAT WASHER SEAL , 18mm X 24mm , 2 Required 900-123-025-70 Fits 356B, C, & 912. |
900-123-025-70 | $1.30 | |
| EOS29.0 |
GASKET FLAT SEALS OIL BREATHER COVER to OIL BREATHER ASSEMBLY 539-07-726 Fits 356 through BT6 WITH American Heater System. |
539-07-726 | $6.26 | |
| EOS30.0 |
OIL BREATHER ASSEMBLY , COMPLETE ASSEMBLY 539-07-075 Fits 356 through BT6 WITH American Heater System. |
539-07-075 | $592.00 | |
| EOS32.0 |
OIL CAP , to OIL BREATHER ASSEMBLY , with SEALING GASKET ORIGINAL PORSCHE SUPPLIED COMPONENT PCG-207-271-00 Fits BT6 WITH European Heater System. |
PCG-207-271-00 | $26.10 | |
| EOS33.0 |
SEALING GASKET , for OIL CAP to OIL BREATHER ASSEMBLY 901-201-272-00 Fits BT6 WITH European Heater System, C & 912. |
901-201-272-00 | $2.45 | |
| EOS34.1 |
OIL BREATHER ASSEMBLY , COMPLETE ASSEMBLY SPECIAL ORDER. 616-107-079-02 Fits 356C WITH American Heater System. |
616-107-079-02 | $661.73 | |
| EOS35.0 |
GASKET FLAT , OIL BREATHER BASE to ENGINE CRANK CASE 616-107-792-01 Fits 356BT6 with European heater system. Also fits 356C & 912. |
616-107-792-01 | $5.92 | |
| EOS36.0 |
CLAMP CIRCULAR HOSE HOSE from HEATER SYSTEM to OIL BREATHER ASSEMBLY , 29mm I.D. , 2 Required 999-512-346-00 Fits 356C WITH American Heater System. |
999-512-346-00 | $4.20 | |
| EOS37.0 |
HOSE OIL RESISTANT , HOSE from HEATER SYSTEM to OIL BREATHER ASSEMBLY , 2.0mm X 4.6mm 616-107-791-00 Fits BT6 WITH European Heater System & C. |
616-107-791-00 | $16.00 | |
| EOS39.0 |
FITTING , OIL BREATHER ASSEMBLY OUTPUT HOSE to WET AIR CLEANER ASSEMBLY 901-107-729-00 Fits 912. |
901-107-729-00 | $136.25 | |
| EOS40.0 |
OUTPUT HOSE , OIL BREATHER ASSEMBLY OUTPUT HOSE to WET AIR CLEANER ASSEMBLY SIC-107-700-00 For wet air cleaners. |
SIC-107-700-00 | $41.10 | |
| EOS41.0 |
HOSE CLAMP , OIL BREATHER ASSEMBLY OUTPUT HOSE to WET AIR CLEANER ASSEMBLY , 2 Required 999-512-346-00 Fits both 356 & 912. |
999-512-346-00 | $4.20 | |
| EOS42.0 |
HOSE OIL RESISTANT , HOSE from HEATER SYSTEM to OIL BREATHER ASSEMBLY SOLD PER METER N-020-359-1 Fits 912. |
N-020-359-1 | $28.40 | |
| EOS43.0 |
CONNECTING PIPE , OIL BREATHER SYSTEM to OIL BREATHER HEATER SYSTEM HOSE 616-107-727-00 Fits 912. |
616-107-727-00 | $9.25 | |
| EOS44.0 |
RUBBER GROMMET SEAL , OIL BREATHER SYSTEM SYSTEM HOSE to HEATER SYSTEM 999-702-047-50 Fits 912. |
999-702-047-50 | $6.90 | |
| EOS45.0 |
DIP STICK for OIL LEVEL MEASUREMENT ONLY AVAILABLE in USED CONDITION 616-07-070 Fits 356 & 912. |
616-07-070 | $70.00 | |
| EOS46.0 |
SEAL at TOP of OIL MEASURING DIP STICK , DIP STICK to DIP STICK CONTAINMENT STEEL TUBE 539-07-709 or 9262K738 Fits 356 & 912. |
539-07-709 or 9262K738 | $2.40 | |
| EOS47.0 |
OIL PUMP UPPER GEAR 616-107-016-01 Fits late style large oil pump. |
616-107-016-01 | $435.00 | |
| EOS48.1 |
OIL PUMP LOWER GEAR , with MECHANICALLY DRIVEN TACHOMETER NLA-107-015-01 Fits late style large oil pump. |
NLA-107-015-01 | $410.85 | |
| EOS48.2 |
OIL PUMP LOWER GEAR , for ELECTRONICALLY DRIVEN TACHOMETER NLA-107-017-00 Fits late style large oil pump. |
NLA-107-017-00 | $420.00 | |
| EOS49.0 |
FLAT GASKET , OIL PRESSURE PUMP COVER to ENGINE OIL PUMP HOUSING FRONT LARGE LATE MODEL OIL PUMP 616-107-902-01 Fits late style LARGE oil pump. |
616-107-902-01 | $2.25 | |
| EOS51.0 |
SHIM TACHOMETER DRIVE SHAFT , SETS END CLEARANCE VALUE LARGE LATE MODEL OIL PUMP 369-05-707 Fits 356 & 912 |
369-05-707 | $6.75 | |
| EOS52.0 |
OIL SEAL ( WHEEL BEARING TYPE ) , SEALS TACHOMETER OUTPUT DRIVE SHAFT from OIL PUMP COVER , LARGE LATE MODEL OIL PUMP 539-07-117 Fits 356 & 912 |
539-07-117 | $3.10 | |
| EOS53.1 |
END PLAY SPACER , 0.80mm THICK for SETTING TACHOMETER DRIVE OUTPUT GEAR in OIL PUMP COVER , USE as Required 369-05-718 Fits 356 & 912. |
369-05-718 | $3.30 | |
| EOS53.2 |
END PLAY SPACER , 0.80mm THICK for SETTING TACHOMETER DRIVE OUTPUT GEAR in OIL PUMP COVER , USE as Required 369-05-719 Fits 356 & 912 |
369-05-719 | $4.50 | |
| EOS53.3 |
END PLAY SPACER , 0.80mm THICK for SETTING TACHOMETER DRIVE OUTPUT GEAR in OIL PUMP COVER , USE as Required 369-05-720 Fits 356 & 912 |
369-05-720 | $4.50 | |
| EOS55.0 |
SEAL RING for TACHOMETER DRIVE BORE PLUG in OIL PUMP COVER 900-123-010-20 |
900-123-010-20 | $0.85 | |
| EOS56.0 |
SEALING PLUG for TACHOMETER DRIVE BORE in OIL PUMP COVER 616-107-109-00 Fits late style large oil pump. |
616-107-109-00 | $30.25 | |
| EOS59.0 |
FLAT GASKET , OIL PRESSURE PUMP COVER to ENGINE OIL PUMP HOUSING FRONT , SMALL EARLY MODEL OIL PUMP 539-07-109 Fits early style SMALL oil pump. |
539-07-109 | $1.85 | |
| EOS63.0 |
PINION DRIVE GEAR , TACHOMETER MECHANICAL DRIVE 369-05-703 CURRENTLY UNAVAILABLE. |
369-05-703 | $77.75 | |
| EOS66.0 |
GASKET FLAT , ENGINE OIL SUMP , 2 Required 539-01-152 Fits 356 & 912. |
539-01-152 | $4.35 | |
| EOS67.0 |
OIL SUMP SCREEN ASSEMBLY , INSIDE ENGINE OIL SUMP , with 16mm HOLE 616-101-380-00 Fits 356 & 912. |
616-101-380-00 | $60.97 | |
| EOS68.0 |
OIL SUMP COVER , ENGINE OIL RESERVOIR BOTTOM 539-01-150 Fits 356 & 912. |
539-01-150 | $71.15 | |
| EOS68.2 |
OIL SUMP COVER PLATE ASSEMBLY , with 16mm THREAD MAGNETIC DRAIN PLUG This ASSEMBLY SOLVES THE LEAKING ORIGINAL SUMP PLATE PROBLEM 616-107-002-00 Fits 356 & 912. |
616-107-002-00 | $200.00 | |
| EOS68.3 |
SEALING WASHER , ALUMINUM with 16mm INSIDE DIAMETER SEALS THE MAGNETIC DRAIN PLUG to THE OIL SUMP PLATE COVER ASSEMBLY 97725A950 Fits drain plug for Sump plate EOS68.2 |
97725A950 | $2.00 | |
| EOS69.0 |
MAGNETIC RIVET LOCATED AT THE CENTER of THE OIL SUMP COVER PLATE ASSEMBLY 900-055-033-20 Fits 356 & 912. |
900-055-033-20 | $6.60 | |
| EOS70.0 |
STUD and NUT ATTACHMENT KIT , for OIL SUMP COVER PLATE ASSEMBLY NLA-061-054-01 Fits 356 & 912. |
NLA-061-054-01-KIT | $28.50 | |
| EOS81.0 |
SENDING UNIT , OIL PRESSURE , 6volt ORIGINAL DESIGN SCREW CONNECTION NLA-613-571-00 |
NLA-613-571-00 | $44.75 | |
| EOS81.1 |
SENDING UNIT , OIL PRESSURE , 6volt AFTERMARKET DESIGN with SPADE CONNECTION SIC-613-571-01 |
SIC-613-571-01 | $9.85 | |
| EOS82.0 |
INTERMEDIATE COUPLING BETWEEN OIL PRESSURE SEND UNIT and OIL PRESSURE ENGINE MANIFOLD 616-07-807 |
616-07-807 | $15.46 | |
| EOS84.0 |
SEALING COPPER RING , BETWEEN INTERMEDIATE COUPLING and OIL PRESSURE ENGINE MANIFOLD 12mm X 18mm X 1.5mm THICK , 1 Required 900-123-006-25 |
900-123-006-25 | $0.51 | |
| EOS85.0 |
SEALING COPPER RING , LOCATED on EACH SIDE of BANJO FITTING 10mm X 16mm X 1.5mm THICK , 2 Required 900-123-004-20 |
900-123-004-20 | $1.00 | |
| EOS86.0 |
BANJO BOLT , SPECIAL HIGH PRESSURE ENGINE OIL TAP , 1 rEQUIRED 616-07-812 |
616-07-812 | $14.36 | |
| EOS87.0 |
SEALING RING , ALUMINUM , 14mm X 20mm Between the OIL TEMPERATURE SENDING UNIT and the SIDE MOUNTED OIL MANIFOLD COUPLING N-013-849-2 |
N-013-849-2 | $0.90 | |
| EOS88.0 |
SENDING UNIT , OIL TEMPERATURE , 6volt , with ORIGINAL DESIGN with SCREW CONNECTION 616-107-806-00 Genuine Factory Part |
616-107-806-00 | $243.93 | |
| EOS88.1 |
SENDING UNIT , OIL TEMPERATURE , 6volt , with GENERIC DESIGN with SCREW CONNECTION NLA-107-805-01 |
NLA-107-805-01 | $36.55 | |
| EOS88.3 |
SENDING UNIT , OIL TEMPERATURE , 12volt , with GENERIC DESIGN with SPADE CONNECTION 901-641-632-00l |
901-641-632-00 | $71.80 | |
Prices and availability subject to change without notice.
